1979 Erfurt Hydraulic Die Spotting Press Model PYXTuS 100.1/400 100ton

Contact us for price

Romania

orCall +4 021 223 03 45

Description

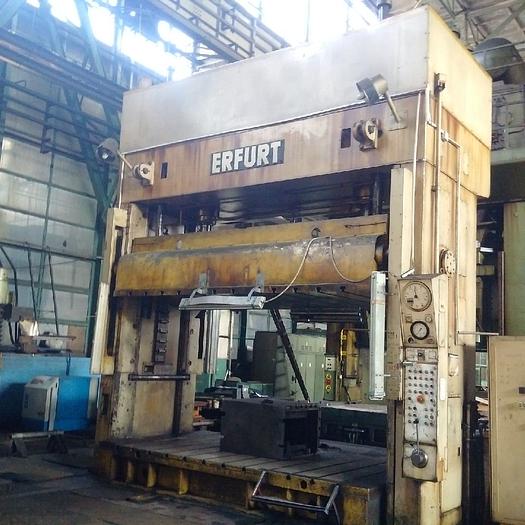

Erfurt Hydraulic Die Spotting Press
Model PYXTuS 100.1/400
- capacity 20-100 tons
- max. ram stroke 1500 mm
- knock-out stroke 300 mm
- shut height 1200 mm
- max. height between ram and table 2400 mm
- moving table height 500 mm
- table dimensions 4000 x 2200 mm
- ram dimensions 4000 x 2200 mm
- table opening 3400 x 1400 mm
- distance between columns 4000 mm
- total height of the press 8339 mm
- height of the press above floor level 6550 mm
- width of the press (left-right) 5970 mm
- width of the press (front-back) 5165 mm
- weight of the press 75 tons
- total motor power 40 kW

under power

For more information please contact us.

Specifications

ManufacturerErfurt Hydraulic Die Spotting Press Model PYXTuS 100.1/400 100ton
Year1979
ConditionUsed
