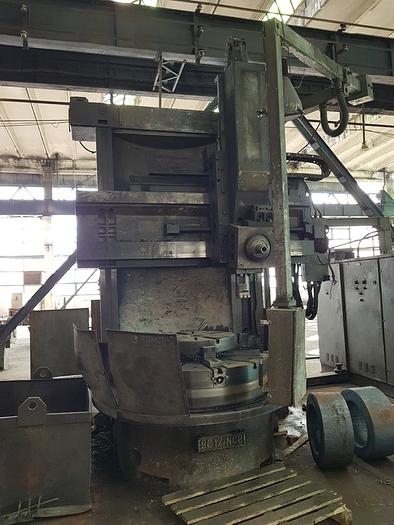

1983 Vertical Turning Lathe SC17NCC with turret head

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Vertical Turning Lathe SC17NCC with turret head
Manufacturer: IM ROMAN (Romania)
Year of manufacture: 1983

Main technical data:
- MAX. SWING .: MM 1650
• FACEPLATE DIA .: MM 1450
• MAX. TURNING HEIGHT (UNDER CROSS-RAIL): MM 1700
- MAX. TABLE LOAD: KG 11000
- CC MAIN DRIVE MOTOR: KW 55
- TABLE SPEED RANGE: RPM 2- 200
- RAPID TRAVERSE 4000MM/MIN
- WORKING FEED RANGE 0.1-400MM/MIN
• TOTAL MACHINE WEIGHT: KG 22000

The lathe has ballscrew. The lathe was designed and equipped by the manufacturer with CNC but now it is old and must be replaced

For more information please contact us.

Specifications

ManufacturerVertical Turning Lathe SC17NCC with turret head
Year1983
ConditionUsed
