1993 Vertical lathe for railway wheels model SC 17 TF2

Contact us for price

Romania

orCall +4 021 223 03 45

Description

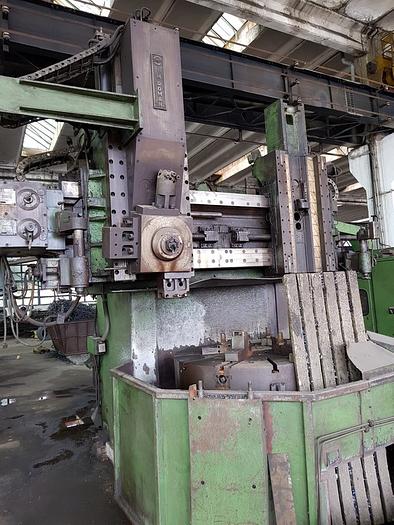

Vertical lathe for railway wheels model SC 17 TF2
Manufacturer: UMARO (Romania)
Year of manufacture: 1993

Main technical data:
Face plate dia. 1450mm
Max. dia of railway wheel 1700mm
Max turning height 500mm
Vertical slide travel
500mm hydraulic
500mm pneumatic
Speed range of face plate 10-200rpm
Horizontal slide travel 800mm
Number of speed range steps 3
Motor power 117 kw
Horizontal and vertical feed range 2-400mm/min
Rapid feed 2500mm/min
Motor power for feeds 4,5 CP each
Max. torque face plate 8000 daN.m
Max. cutting force 5000 daN
Dia. at the max. cutting force is applied 1200mm
Machine weight 26000 Kg
Required surface for installation 6550x6156mm

Do not hesitate to contact us for any other information.

Specifications

ManufacturerVertical lathe for railway wheels model SC 17 TF2
Year1993
ConditionUsed
