1982 Vertical Turning Lathe SC14CC

Contact us for price

Romania

orCall +4 021 223 03 45

Description

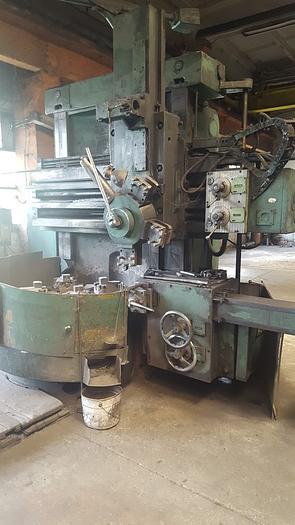

Vertical Turning Lathe SC14CC
The machine was built in 1982 by I.M. ROMAN (Romania)

Main technical data:
Table dia. 1350mm (53”)
Max. turning diameter 1400mm
Max. workpiece height 1000mm
Max. workpiece weight 6000kg
Cross rail travel 800mm
Head travel in X axis 1050mm
Head travel in Z axis 760mm
Max. head angle of tilt +/- 35 degree
Table speed 5-250 rpm
Number of feed box steps 16
Working feed range 0.05-5 mm/min
Quick feed 2500mm/min
Main driving motor power 57Kw
Total machine weight 16000 kg

The machine is equipped with D.C. motor.

For more information please contact us.

Specifications

ManufacturerVertical Turning Lathe SC14CC
Year1982
ConditionUsed
