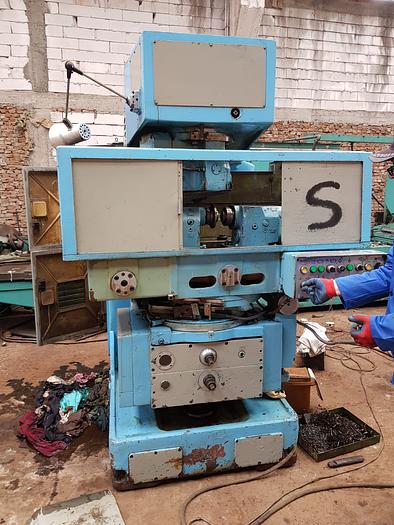

Gear shaving machine STANKO type 5702B

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Gear shaving machine STANKO type 5702B

Max. diameter: 320 mm

Min module: 1,5 mm

Max. module: 6 mm

Max. gear width: 100 mm

Min/max. distance between shaver spindle and gear: 120 / 350 mm

Distance between table's centers: 500 mm

Table's max. travel: 135 mm

Max. turning angle of the table: 90 degrees

Max. turning angle of the shaving head: +/- 35 degrees

Shaver speed range: 50 - 400 rot/min.

Net weight of the machine: 4700 kg

For more information please contact us.

Specifications

ManufacturerGear shaving machine STANKO type 5702B
ConditionUsed
