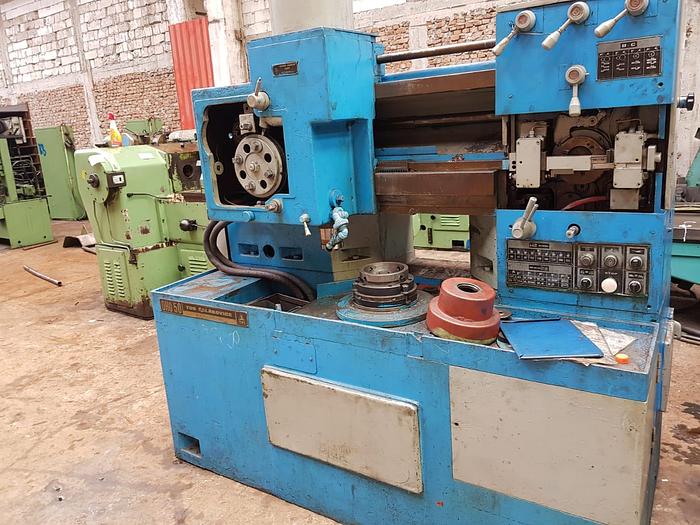

Gear shaping machine TOS OHO-50

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Gear shaping machine TOS OHO-50
Made in: Czech Republic
Manufacturer: TOS

Specification:

Max wheel diameter:
-With external teeth: 500 mm
-With internal teeth: 450 mm
Min wheel diameter: 50 mm
Gear width: 125 mm
Min module: 1
Max module: 6
Max work-piece weight: 100 kg
Max number of teeth: 300
Min number of teeth: 12
Bore of table: 75 mm
Deep bore of table: 500 mm
Double strokes per min: 56-355
Main motor output: 4 kW
Machine dimensions: 1870x890x1920 mm
Machine weight: 3500 kg

For more information please contact us.

Specifications

ManufacturerGear shaping machine TOS OHO-50
ConditionUsed
