1982 Vertical Turning Lathe SC33

Contact us for price

Romania

orCall +4 021 223 03 45

Description

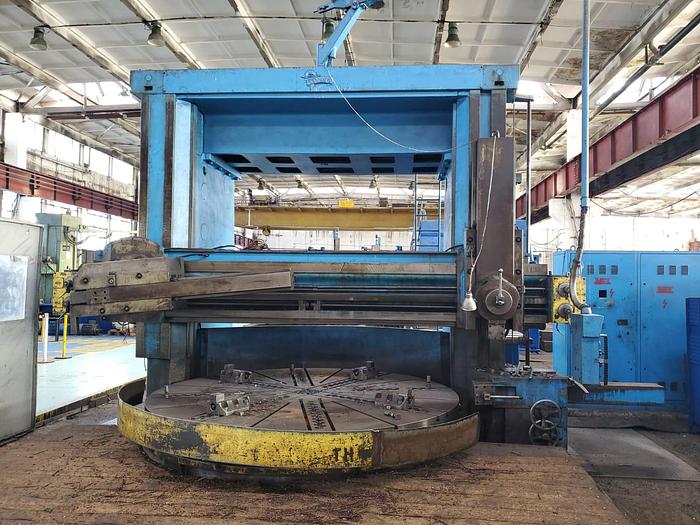

Vertical Turning Lathe SC33 conventional
Manufacturer: TITAN (Romania)
YOM: 1982

Main technical data:
Faceplate diameter - 3000mm
Max.turning diameter - 3300mm
Max. working height - 2300mm
Max.turning diameter with a side tool post - 3300mm
Max. work piece weight - 18000kg
Table speed range 1.02-92 RPM,
Working feed range 0.05-5 mm/rev.,
Main motor power 55 kW,
Overall dimensions: 5600 x 5300 x 5400 mm,
Weight 47350 kg

For more details please contact us.

Specifications

ManufacturerVertical Turning Lathe SC33
Year1982
ConditionUsed
