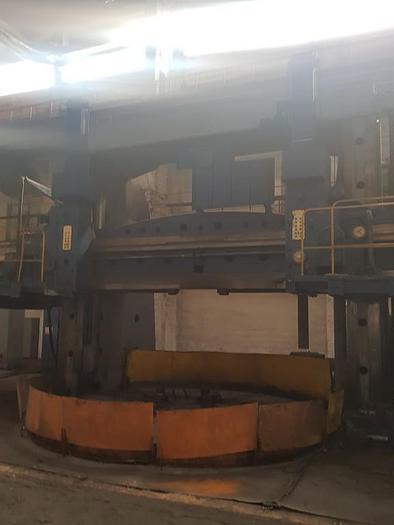

1974 Vertical Turret Lathe - Double Column TOS SK50

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Vertical Turret Lathe - Double Column
Make TOS
Type SK50
Year of manufacture ab.1974
Type of control Convensional
Country of origin Czech Republic

Technical details:
Table Diameter ....................................4,770 mm
Table Weight Capacity ................................40 Tons
Table Motor power..................80 kW
Table Speeds ...................................1,92 - 32.8 RPM
Max Turning Diameter-Rams..........................5,180 mm
Distance between the columns.......................5.200 mm
Max height under tool .............................3,050 mm
Vertical ram travel : ............................1400mm
Horizontal ram travel : ............................1250mm
Vertical Ram Swivel ........................+/- 30 to 45 Degrees
Feeds (15) ...................................0.005 - 11 mm/rev
Machine Weight ......................................115 Tons

Equipped with:
Two Swivelling Ram Heads
Side Head

For more information please contact us.

Specifications

ManufacturerVertical Turret Lathe - Double Column TOS SK50
Year1974
ConditionUsed
