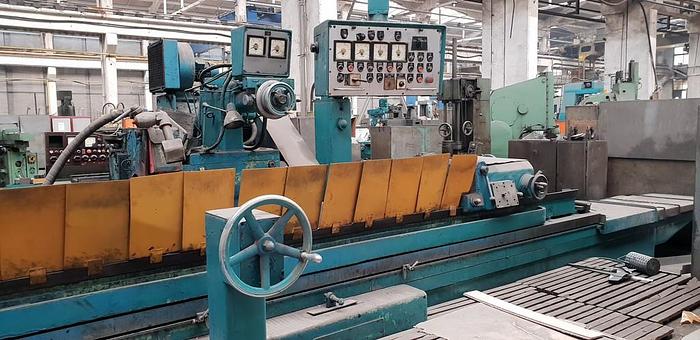

1978 Cylindrical grinding machine STANKO 3M194 560x4000mm

1978 Cylindrical grinding machine STANKO 3M194 560x4000mm

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Cylindrical grinding machine STANKO 3M194 560x4000mm Manufactured by Kosiora (Russia) Max. work piece diameter, mm 560 Min. work piece diameter, mm 40 Max. work piece length, mm 4000 Max. grinding length, mm 3800 Max. work piece weight, kg 3000 Size of grinding wheel, mm: - outer diameter 400...750 - width 100 - inside diameter 305 Speed of work, rpm 12...120 Speed grinding wheel, rpm 600...1200 Traverse speed of table, m/min 22...50 Max. table stroke, mm 4240 Min. table stroke, mm 110 Table inclination, degrees: - clockwise 0,3 - counterclockwise 6 Headstock rotation speed, rpm 8...80 Grinding head movement, m/min 0,46 Table movement speed, m/min 0,05...3,7 Total power required, kW 42 Machine dimensions, mm 14065 x 3615 x 2450 Machine weight, kg 34300 For more information please contact us.

Specifications

ManufacturerCylindrical grinding machine STANKO 3M194 560x4000mm
Year1978
ConditionUsed
