1978 Sheet metal levelling / straightening machine UBR 16x2500/1-10

Contact us for price

Romania

orCall +4 021 223 03 45

Description

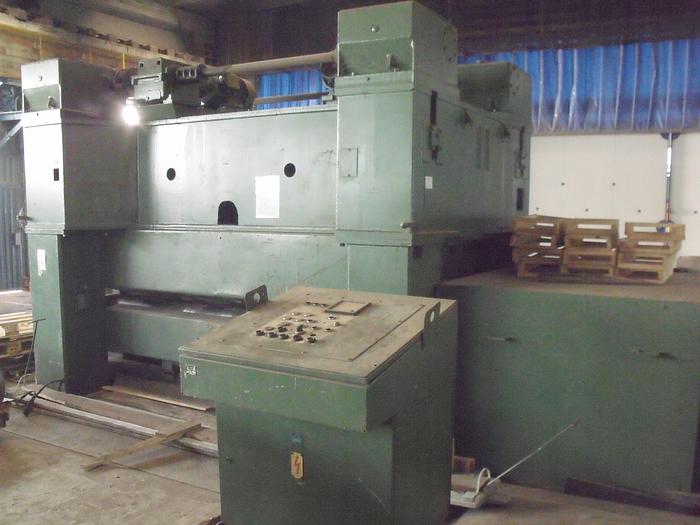

Sheet metal levelling / straightening machine UBR 16x2500/1-10

Manufacturer VEB BLEMA GOTHA
Country of origin: Germany

Specification:
Max sheet width: 2500 mm,
Sheet thickness:
-Max: 16 mm,
-Min: 6 mm,
Straightening rollers:
-Total units: 11,
-Top rollers: 5,
-Bottom rollers: 6,
-Diameter of rollers: 180 mm,
-Speed per 1 min: 10 m,
Way of traverse: -10... +40 mm,
Speed of traverse adjustment per 1 min: 60 mm,
No of supporting rollers:
-Top: 18 ,
-Bottom: 21,
Main motor power: 37 kW,
Other motors: 2x18,5 kW; 2x1,1 kW,
Machine weight: 46110 kg,

For more information please contact us.

Specifications

ManufacturerSheet metal levelling / straightening machine UBR 16x2500/1-10
Year1978
ConditionUsed
