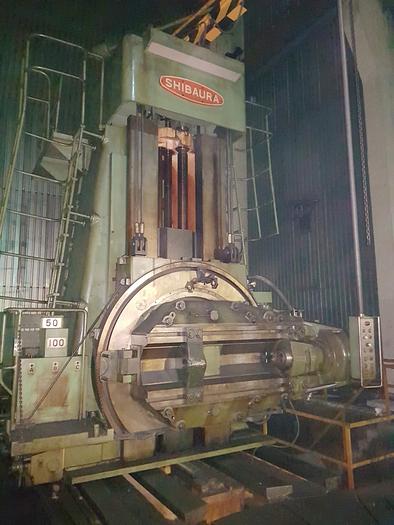

Gear hobbing machine SHIBAURA HHA600B(S) 6000mm dia. YOM 1977

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Gear hobbing machine SHIBAURA HHA600B(S)
Year of manufacture: 1977

Main technical data:
Max. dia of gear to be hobbed: 6000mm
Min. dia of the gear to be hobbed : 1200mm
Center distance between hob and table spindle: 3270mm(max) 680mm (min)
Vertical travel of hob saddle 2000mm
Dia. of table: 4300mm
Center hole of table 1000mm
MAx. load on the table: 70000kg
DIa. of the master worm wheel 4100mm
Hob spindle speed 6-90rpm (continuous)
Weight 140.000kg

For more information please contact us.

Specifications

ManufacturerSHIBAURA
ModelHHA600B(S) 6000mm dia.
Year1977
ConditionUsed
