Horizontal Boring Mill TOS H100A 1970

Horizontal Boring Mill TOS H100A 1970

Contact us for price

Romania

orCall +4 021 223 03 45

Description

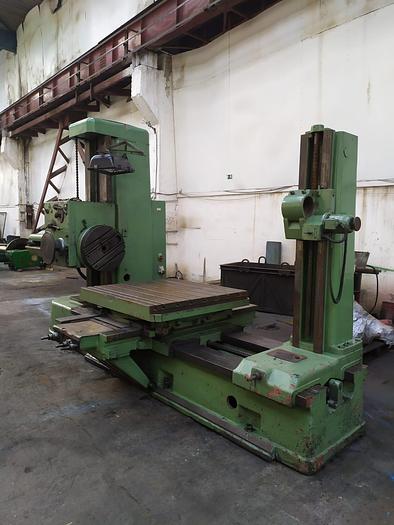

Horizontal Boring Mill TOS H100A

Made in: Czech Republic

Manufacturer: TOS VARNSDORF

Yom 1970



Specification:

SPINDLE DIAMETER : Ø100mm (3.93”)

SPINDLE TAPER : ISO 45

SPINDLE TRAVEL : 900mm (35.4”)

SPINDLE SPEED : 1120 RPM

TABLE SIZE : 1245mm X 1245mm (49” X 49”)

MAX TABLE CAPACITY : 3000KG

TRAVELS:

X Travel, Cross : 1250mm (49.2”)

Y Travel, Vertical : 1200mm (47.2”)

Z Travel, Longitudinal : 1800mm (70”) without tailstock mounting

Equipped with Tailstock

Machine weight 13550kg


For more information please contact us.

Specifications

ManufacturerTOS
ModelW100
Year1970
ConditionUsed
