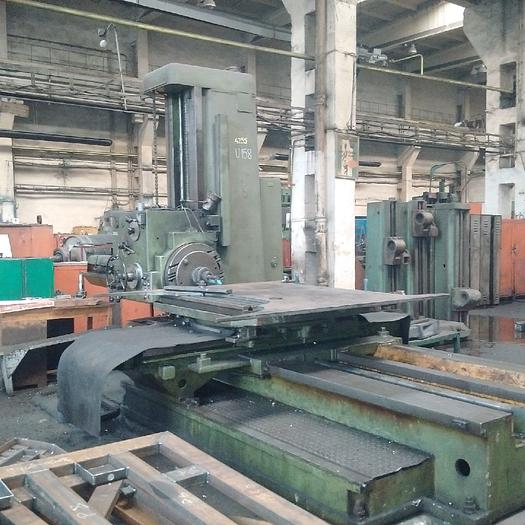

Horizontal Boring Mill TOS W100 1972

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Horizontal Boring Mill TOS W100
Made in: Czech Republic
Manufacturer: TOS VARNSDORF
Yom 1972

Specification:
Spindle size: 100 mm
Spindle speeds: 7.1-1120 rpm
Spindle taper: Morse 6
X-Axis: 1600 mm
Y-Axis: 1120 mm
Z-Axis: 1250 mm
W-Axis: 900 mm
Table size: 1250x1250 mm
Max table load: 3 ton
Table type: rotary
Facing chuck diameter: 600 mm
Slide travel: 210 mm
Max facing diameter: 900 mm
Facing chuck speed range: 7.1 - 224 rpm
Total power: 15 kW
Dimension: 6020x3000x3500
Weight: 14000 kg

For mre information please contact us.

Specifications

ManufacturerTOS
ModelW100
Year1972
ConditionUsed
