Heavy duty lathe SNG 2000x8000

Contact us for price

Bucharest, Romania

orCall +4 021 223 03 45

Description

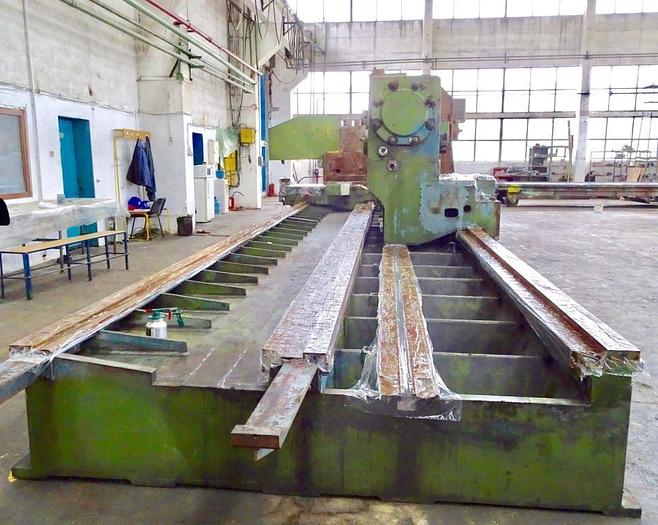

Heavy duty lathe SNG 2000x8000
Manufacturer : IUG Craiova, Romania
Main technical data:
Faceplate dia. 1800mm
Maximum swing over bed – 2800mm
Maximum swing over slide – 2000mm
Maximum lengh between centers – 8000mm
Maximum weight of workpiece between centers – 40.000 kg
Maximum weight of workpiece in faceplate - 7000kg
Quill travel – 300mm
Cross slide travel – 970mm
Main spindle speed range – 2-240 rpm
Longitudinal and cross feed range – 1-400 mm/min
Rapid traverse – 2500 mm/min
Main motor power – 82 Kw
Overall dimensions (hxlxL) – 3300x4740x14600 mm
Weight : 93.000 kg
Only mechanical parts are available. No electric.
On request the lathe can be offered retrofitted and with brand new electric equipment.

Specifications

ManufacturerIUG
ModelSNG 2000x8000
Year1986
ConditionUsed
