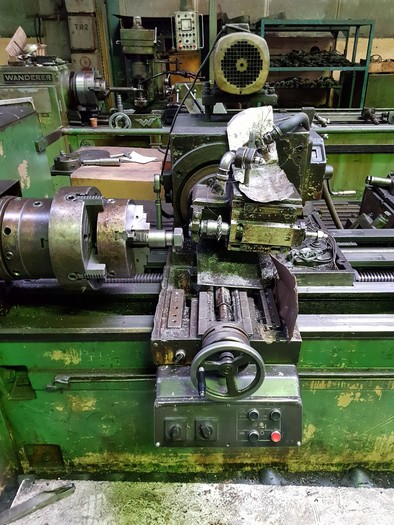

Thread Milling and Hobbing Machine HECKERT ZFWVG 250x5000

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Thread Milling and Hobbing Machine HECKERT ZFWVG 250x5000

Main technical data:
Work-piece diameter over bed: 500 mm
Milling length: 5000 mm
Min module: 2
Max module: 10
Work-piece diameter over saddle: 250 mm
Center height over bed: 260 mm
Work-piece spindle bore: 102 mm
Tailstock quill adjustment: 100 mm
Electrics-voltage/frequency: 380V; 50Hz
Total power requirement: 10 kW
Dimensions: 7000x1700x1600 mm
Total weight: 6600 kg

For more information please contact us.

Specifications

ManufacturerHECKERT
ModelZFWVG 250x5000
Year1980
ConditionUsed
