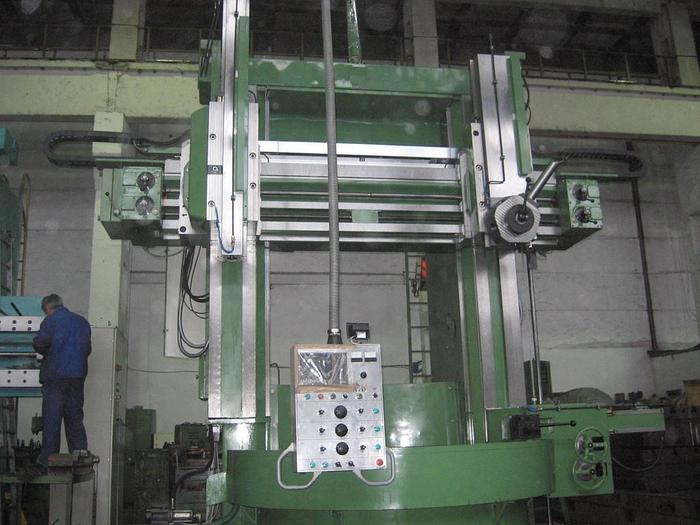

Double Column Vertical Lathe model SC 27 retrofitted

Contact us for price

Bucharest, Romania

orCall +4 021 223 03 45

Description

Double Column Vertical Lathe model SC 27 completely retrofittted, with following technical data:
Manufacturer: FMUA after MORANDO licence (Romania)
• MAX. TURNING DIA.: MM 2650
• TABLE DIAMETER: MM 2500
• MAX. TABLE LOAD: KG 15000
• MAX. ADMITTED WORKPIECE HEIGHT: MM 1900
• MAIN MOTOR POWER: KW 60
• TABLE SPEED RANGE: 1-112 RPM
• LEFT-HAND HEAD TRAVEL: MM 1200
• RIGHT-HAND HEAD TRAVEL: MM 760
• CROSS RAIL VERTICAL TRAVEL: MM 1600
• TOTAL MACHINE WEIGHT: KG 40000

The machine will be retrofitted and supplied with following brand new components:
- General revision of the machine;
- Regrinded guideways and plating of the counter guideways with Biplast/Turcite;
- New Siemens electric cabinet with Siemens driver for the main motor (old motor of the machine) and conditioned air in the cabinet;
- Digital Readout System on 4 axis;
- New Rexroth, Vickers or similar hydraulic equipment;
- New Oiling installation DROPSA-Italy;
- Geometrical precision as per ISO norms (like a new machine)

Specifications

ManufacturerFMUA
ModelSC27 retrofitted
Year2017
ConditionUsed
