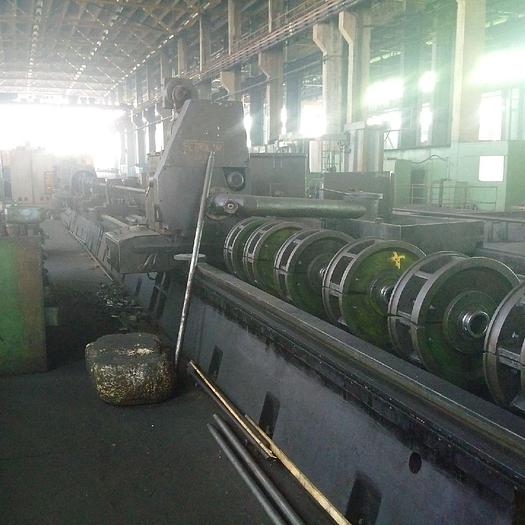

Deep Hole Boring Machine 1MAI MGA250X10000

Contact us for price

Bucharest, Romania

orCall +4 021 223 03 45

Description

Deep Hole Boring Machine 1MAI MGA250X10000
Made in Romania
Main technical data:
Up to 10 meters boring depth
From 60-150mm dia. borin in solid
Up to 250mm enlarging an existing hole.
- Max. slide. over the guideways 900mm
- the maximum diameter of the clamping flange: 500mm
- speed domain: 150 - 1100rpm
- main motor Siemens 37KW DC
- work feed: 0-2400mm / min
- rapid feed: 2400mm / min
- height of the center axis over the guideways 450mm
- max. weight of the work piece 5000kg
- width of the bed 550mm
- length of the machine 21160mm
- machine weight ab. 40ton
Accesories:
- Steady rests;
- Support
- other accesories

Specifications

Manufacturer1 MAI
ModelMGA 250X10000
Year1982
ConditionUsed
