2020 Double Column Vertical Turning Lathe SC43 completely retrofitted and upgraded with CNC

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Double Column Vertical Turning Lathe SC43 completely retrofitted and upgraded with CNC
Made in Romania by TITAN factory
Year of manufacture: 1980
Retrofitted completely 2019-2020

Main technical data:
Fanuc 0iD controller
FACE PLATE DIA. MM 4000
MAX.SWING MM 4300
MAX SWING HEIGHT MM 2500
MAX. LOADING ADMITTED KG. 18,000
FACEPLATE SPEED RANGE 1-90RPM
ROTARY SPEED OF PLATAFORM GIR/MIN 1,02-92
FEEDS RANGE MM/GIR 0,05-5
CARRIAGES RAPID FEEDS MM/MIN 2500
MAIN MOTOR POWER KW. 55
MACHINE WEIGHT AB. 64TON

The machine will be completely retrofitted and supplied with following brand new components:
- General revision of the machine;

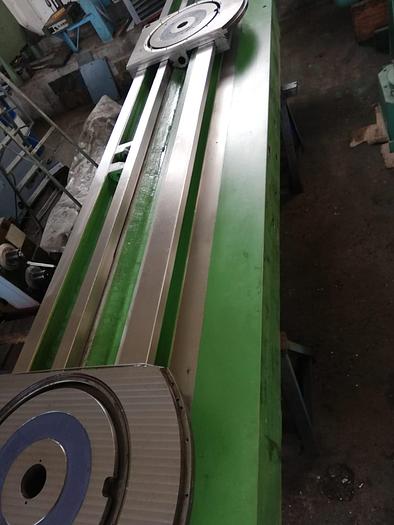

- Regrinded guideways and plating of the counter guideways with Biplast/Turcite;
- the hydraulic unit with components made by CE
- the electrical equipment with parts made by Schneider , Shrack, Siemens
- old main drive motor - 55 kW – DC with new Siemens drive
- the feeds drives motors - Siemens made 20 Nm. - AC brushless
- the CNC equipment – Fanuc 0iD
- ILC / DROPSA – Italy lubricating components ,
- HANSA FLEX Germany rubber and metal tubes ,
- IGUS / BREVITTI Italy cables and tubes conveyors ,
- TIMKEN , SKF , FAG , RHP , INA bearings ,

Standard Accessories included
- one set of four table jaws ,

The VTL is equipped with new CNC Fanuc 0iD for two vetical heads for turning operations only.

To the machine is granted 12 months guarantee period for spare parts.

Delivery time for the machine: 3-4 months from the advance payment

Specifications

ManufacturerDouble Column Vertical Turning Lathe SC43 completely retrofitted and upgraded with CNC
Year2020
ConditionRefurbished
