Radial drilling machine model RFH100 / 3000

Contact us for price

Romania

orCall +4 021 223 03 45

Description

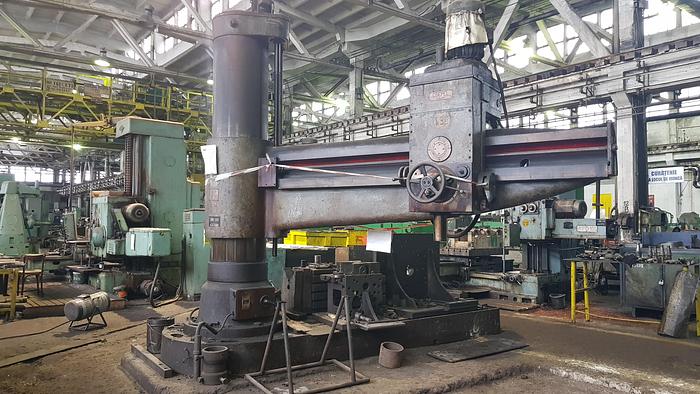

Radial drilling machine model RFH100 /3000
Manufacturer: CSEPEL (HUNGARY)

Main technical data:
Boring diameter capacity: 100 mm
Drilling radius: 3000 mm
Work-piece height range: 440-2100 mm
Spindle taper: MT 6
Spindle turning speed range: 18-1800 rpm
Quill stroke: 400 mm
Surface area: 3160x1500 mm
Boring feed range: 0,0375 - 2 mmm/min
Distance spindle - column:
-Min.: 400 mm
-Max.: 2850 mm
Total power requirement: 13 kW
Machinery dimensions: 4390x1550x4130 mm
Machinery weight: 13200 kg

Equipped with one cubic table.

For more information please contact us.

Specifications

ManufacturerRadial drilling machine model RFH100 / 3000
ConditionUsed
