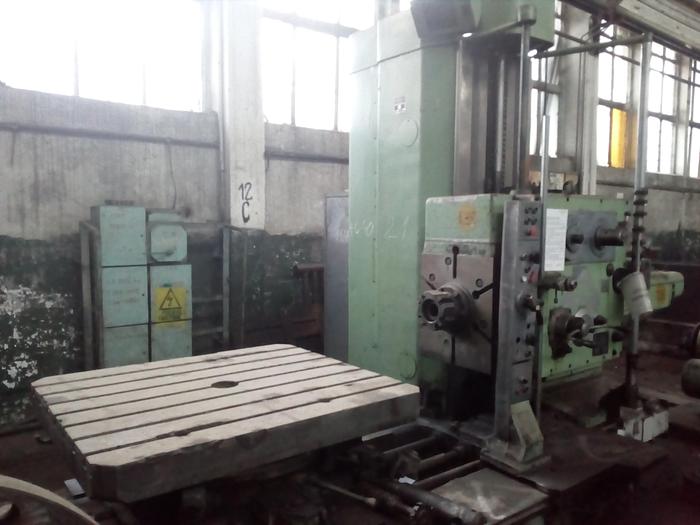

STANKO 2622 B Table type boring machine

Contact us for price

Romania

orCall +4 021 223 03 45

Description

STANKO 2622 B Table type boring machine

Specifications:
- Spindle diameter: 110 mm
- Length of built-in rotary table: 1250 mm
- Width of built-in rotary table: 1120 mm
- Number of trenches: 7
- Distance between grooves: 140 mm
- Groove width: 22 mm
- 710 mm
- vertical travel of the headstock: 1000 mm
- longitudinal sliding built-in rotary table: 1,120 mm
- cross the built-in rotary table 1000 mm
- number of spindle speeds: 21
- the amount of feed of the spindle 30
- the amount of feed of the headstock 30
- the amount of feed table 30
- the type of power supply network: three-phase
- the amount of electrical motors: 5
- Maximum power: 16 kW
- overall dimensions (L x W x H.): 5700 x 3000 x 3000 mm
- weight of the machine electrical equipment: 12500 kg

For more information please contact us.

Specifications

ManufacturerSTANKO 2622 B Table type boring machine
ConditionUsed
