Sold

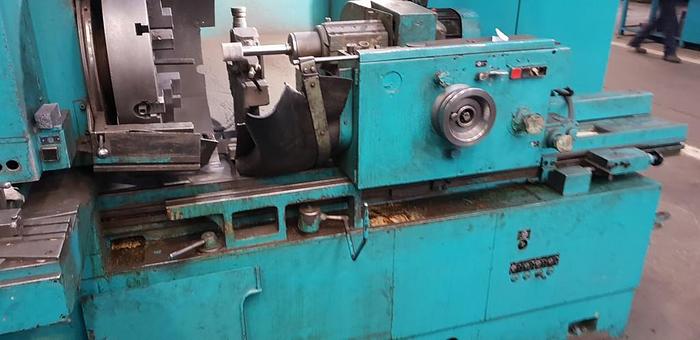

Internal grinding machine SI6/1-AS x 500

Romania

Description

WMW-ERFURT INTERNAL GRINDER MODEL: SI6/1-ASx500 Capacities: Max external diameter ground. 400 mm. Max depth ground. 315 mm. Max swing inside guards. 500 mm. Max distance workhead flange to: Wheelhead. 1250 mm. Face grinding wheel. 500 mm. Centre height: over table. 355 mm. over floor. 1210 mm WORKHEAD: Speeds (11) 40 - 400 rpm Motor. 0.9/1.5 KW Swivels right to left. 0 - 30ï Rapid traverse. 10 mm/min MOTORS: Internal spindle 7.5 KW Workhead 0.9/1.5 KW Total connected load. 17 KW Approximate Weight: 6500 Kg For more information please contact us.

Specifications

ManufacturerInternal grinding machine SI6/1-AS x 500
ConditionUsed
