1980 Double Column Vertical Turning Lathe 6300mm dia C5263

Contact us for price

Romania

orCall +4 021 223 03 45

Description

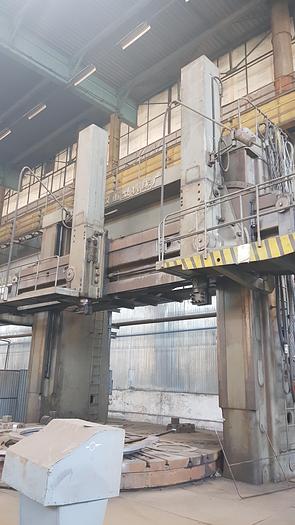

Double Column Vertical Turning Lathe 6300mm dia C5263
Made in China

Main technical data:
Table dia 6300mm
Max cutting dia 6500mm
Max turning dia 6300mm
Max work piece height 3500mm
Max work piece weight 50t
Toolbar Section height 50m
Total cutting force 100000N
Table torque 16000N.m
Table speed phrase 4 levels, stepless
Table speed range 0.42-42rpm
Beam lifting stroke 2850mm
Beam lifting speed 410mm/min
Main motor power DC90kw
Total motor power 128.5kw
Machine weight 120t

For more information please contact us.

Specifications

ManufacturerDouble Column Vertical Turning Lathe 6300mm dia C5263
Year1980
ConditionUsed
