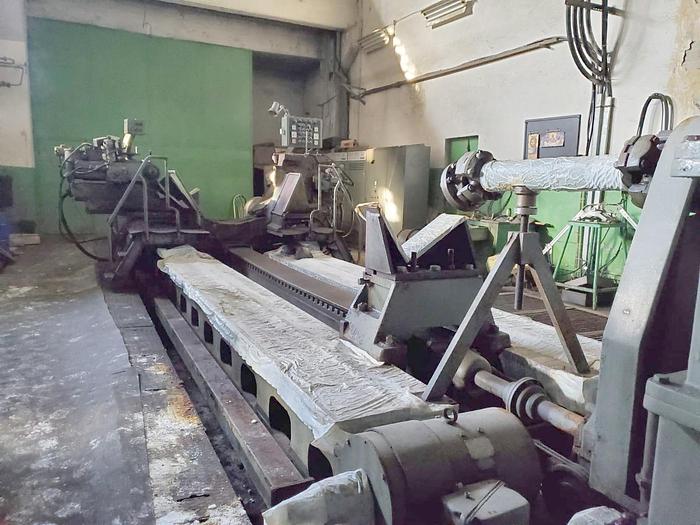

1975 Roll Grinding machine FARREL GIUSTINA 50''-63'' x 304'' 1600x7721mm

Contact us for price

Romania

orCall +4 021 223 03 45

Description

This machine is used for external grinding of cylindrical, convex and concave surfaces of rolls. Also for finish machining
Machine used to produce rolls of paper machines (including finishing)

Roll Grinding machine FARREL GIUSTINA 50''-63'' x 304''
Max. grinding diameter, mm 1600
Concavity of workpiece, mm 18.3
Crown out of workpiece, mm 18.3
Workpiece length, mm 7721
Grinding carriage:
diameter of grinding wheel, mm 600
width of grinding wheel, mm 63
spindle speed, rpm 1400
longtitual movement of grinding wheel, mm 9875
Spindle headstock (spindle speed, rpm) 8-32

Specifications

ManufacturerRoll Grinding machine FARREL GIUSTINA 50''-63'' x 304'' 1600x7721mm
Year1975
ConditionUsed
