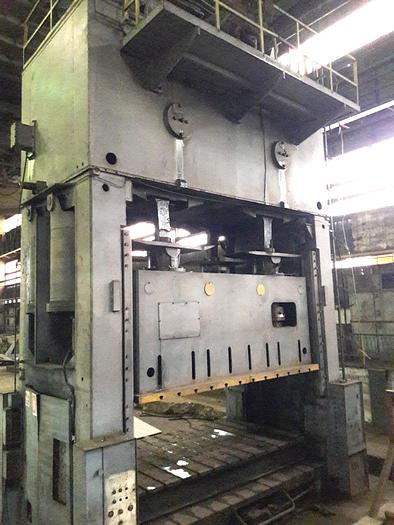

1980 Sheet Stamping press 800TON made in Romania after license ERFURT PKZV 800 ERFURT

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Sheet Stamping press 800TON made in Romania after license ERFURT PKZV 800

Year of manufacture: ab. 1980
maximum force of slide 8000KN
Stroke of slide 500MM
Adjustability of slide 500MM
maximum distance between
bolster and slide (stroke down,
adjustment up) SDAU 1700MM
Width between columns 4000mm
Slide area (width x depth) 3950x2500MM
Bed area (width x depth) 4000x2500MM
Opening in bed (width x depth) 3520x1520MM
Main motor power 90KW
Idle stroke rate 17 / MIN
Counter pressure of cushion (in bed) 1600KN
Height above ground, from. 8400MM
machine weight. 170TON

For more information please contact us.

Specifications

ManufacturerSheet Stamping press 800TON made in Romania after license ERFURT PKZV 800
ModelERFURT
Year1980
ConditionUsed
