1979 Radial drilling machine RFH75 / 1750 CSEPEL

Contact us for price

Bucharest, Romania

orCall +4 021 223 03 45

Description

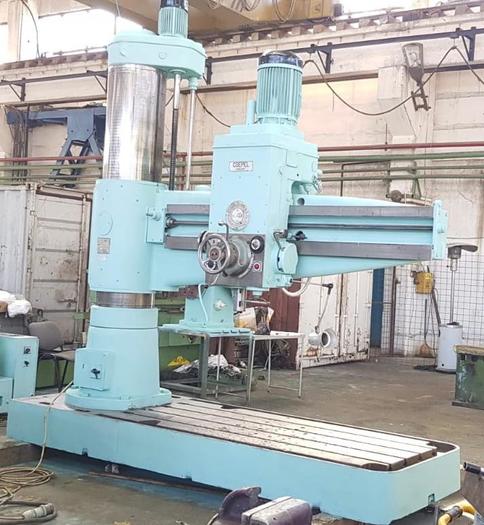

Radial drilling machine RFH75 / 1750
Manufacturer: CSEPEL (Hungary)
Year of manufacture 1979

Main technical data:
Max. Diameter: 75 mm
Spindle taper: Morse 5.
Arm length: (to column) 1750 mm
Spindle speed: 1900 / min.
Max. Vertical arm adjustment: 950 mm
Spindle travel - W axis: 380 mm
Main motor power: 11 kW
Machine dimensions lxwxh: 2720x1130x3400 mm
weight Machine: 6306 kg

Accessories:
2 cubic tables

The machine was refurbished with new electric equipment.
The machine is in working condition.

For more details please contact us.

Specifications

ManufacturerRadial drilling machine RFH75 / 1750
ModelCSEPEL
Year1979
ConditionUsed
