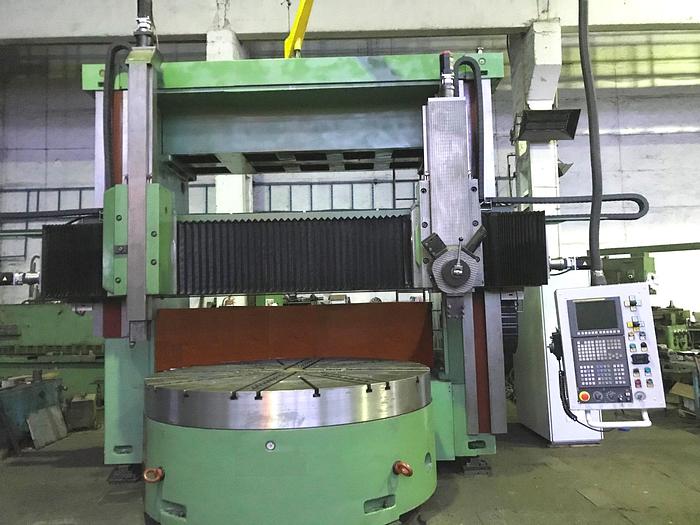

DOUBLE COLUMN - CNC - VERTICAL TURNING LATHE SC25/ 33 CNC

DOUBLE COLUMN - CNC - VERTICAL TURNING LATHE SC25/ 33 CNC

Contact us for price

Romania

orCall +4 021 223 03 45

Description

DOUBLE COLUMN - CNC - VERTICAL TURNING LATHE SC25/ 33 CNC COMPLETELY RETROFITTED 2020 WITH GUARANTEE PERIOD. Main technical data: ∙ MAX. TURNING DIA.: MM 2650 ∙ TABLE DIAMETER: MM 3250 ∙ MAX. TABLE LOAD: KG 15000 ∙ MAX. ADMITTED WORKPIECE HEIGHT: MM 1800 ∙ MAIN MOTOR POWER: KW 60 ∙ TABLE SPEED RANGE: 1-100 RPM ∙ LEFT-HAND HEAD TRAVEL: MM 1200 ∙ RIGHT-HAND HEAD TRAVEL: MM 760 ∙ CROSS RAIL VERTICAL TRAVEL: MM 1400 ∙ TOTAL MACHINE WEIGHT: KG 44000 The lathe was completely retrofitted and equipped with following brand new components: the hydraulic unit with components made by Rexroth and Hansa Flex ,  the electrical equipment with parts made by Schrack, Siemens, and Schneider.  the main motor driver , Siemens made – 60 kW  the feeds drives motors , Fanuc made 12 Nm. - AC brushless  the CNC equipment – Fanuc 0iTD  ILC / DROPSA – Italy lubricating components ,  HANSA FLEX Germany rubber and metal tubes ,  IGUS / BREVITTI Italy cables and tubes conveyors ,  TIMKEN , SKF , FAG , RHP , INA bearings ,  WISCONSIN MACHINERY ball screws ,  HENCKEL Germany putty and paint ,  Turcite, Biplast anti friction materials Guarantee period 12 months. For more information please contact us.

Specifications

ManufacturerDOUBLE COLUMN - CNC - VERTICAL TURNING LATHE SC25/ 33 CNC
ConditionRefurbished
