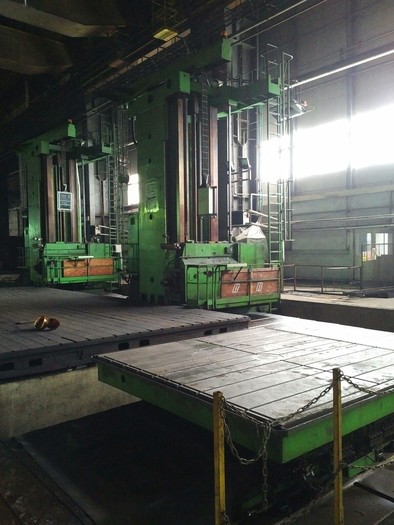

Horizontal Boring Mill AFP200 CNC retrofitted and upgraded with CNC in 2003

Contact us for price

Bucharest, Romania

orCall +4 021 223 03 45

Description

Horizontal Boring Mill AFP200 CNC retrofitted and upgraded with CNC in 2003
MAIN TECHNICAL FEATURES:
• BORING SPINDLE DIAMETER : MM 203.2
• MILLING SPINDLE DIAMETER : MM 335
- TRAVELS:
- HORIZONTAL TRAVEL OF COLUMN (X) : MM 20000
- VERTICAL TRAVEL OF HEADSTOCK (Y) : MM 3800
- BORING SPINDLE TRAVEL (Z) : MM 1500
- QUILL TRAVEL (W) : MM 900
- MAIN DRIVE MOTOR : KW 100
CNC Sinumerik 840 D
Accesories:
- floor plates 6000x2000x400mm;
- rotary table MRD4000X3500MM loading capacity 100ton

Specifications

ManufacturerTITAN
ModelAFP200CNC with 2 columns
Year2003
ConditionUsed
