1980 519 Gleason Universal Angular Hypoid Bevel Gear Tester

Contact us for price

Romania

orCall +4 021 223 03 45

Description

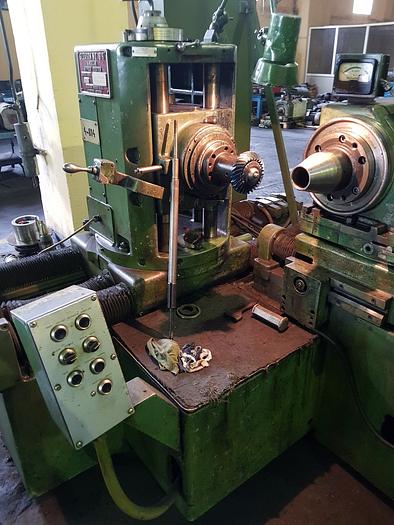

519 Gleason Universal Angular Hypoid Bevel Gear Tester

Specification Description
Max Dia. Of Bevel Gear At 90 Degree Shaft Angle 36" (914mm)
Max Dia. Of Bevel Pinion At 90 Degree Shaft Angle 12" (305mm)
Max Offset Of Gear Spindle Above Or Below Pinion Spindle Center 6" (152mm)
Shaft Angle Range 0 To 180 Degrees
Max. Dia. Of Parallel Shaft Gear 49" (1245mm)
W/Angular Head Setting W/Max. Offset
Max. Dia. Of Parallel Shaft Pinion 25" (635mm)
W/Angular Head Setting W/Max. Offset
Max. Center Distance 25" (635mm)
Min. Center Distance 0" (0.0mm)
Main Motor 5 HP
Floor Space 90" x 75"

We also have for sale:
Hypoid Grinder Gleason 137
Hypoid Cutter Sharpener Gleason 13A
Cutter inspection machine Gleason 528
Hypoid generator Gleason 650

For more inforamtion please contact us.

Specifications

Manufacturer519 Gleason Universal Angular Hypoid Bevel Gear Tester
Year1980
ConditionUsed
