1980 Double Column Vertical Turning Lathe 6300mm dia C5263

1980 Double Column Vertical Turning Lathe 6300mm dia C5263

Contact us for price

Romania

orCall +4 021 223 03 45

Description

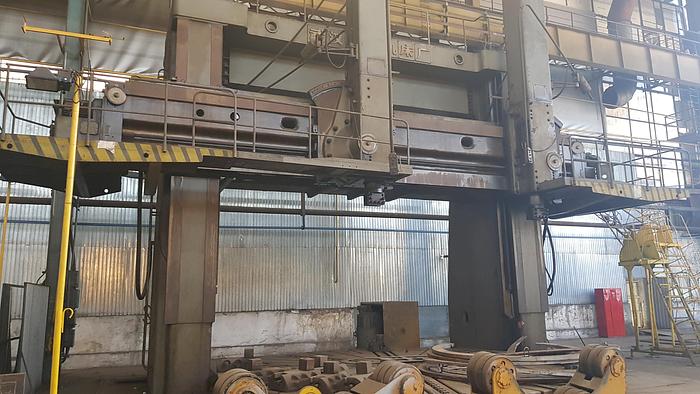

Double Column Vertical Turning Lathe 6300mm dia C5263

Made in China


Main technical data:

Table dia 6300mm

Max cutting dia 6500mm

Max turning dia 6300mm

Max work piece height 3500mm

Max work piece weight 50t

Toolbar Section height 50m

Total cutting force 100000N

Table torque 16000N.m

Table speed phrase 4 levels, stepless

Table speed range 0.42-42rpm

Beam lifting stroke 2850mm

Beam lifting speed 410mm / min

Main motor power DC90kw

Total motor power 128.5kw

Machine weight 120t


For more information please contact us.

Specifications

ManufacturerDouble Column Vertical Turning Lathe 6300mm dia C5263
Year1980
ConditionUsed
