1977 Radial drilling machine CSEPEL RF31/B

1977 Radial drilling machine CSEPEL RF31/B

Contact us for price

Romania

orCall +4 021 223 03 45

Description

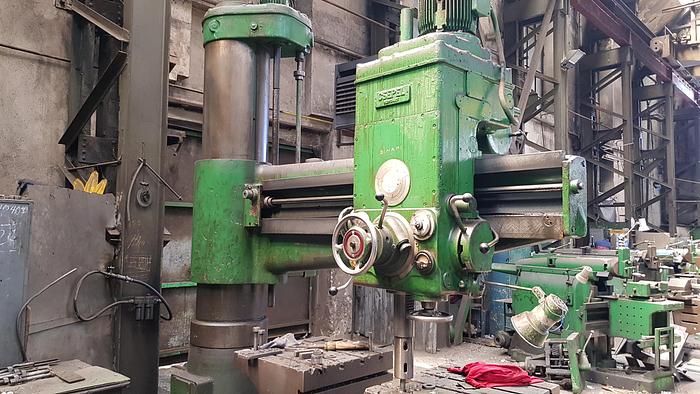

Radial drilling machine CSEPEL RF31/B


Main technical data:

- Drilling capacity : 60/75 mm.

- Working radius from column : 1.750 mm.

- Spindle power : 7,5 Kw.

- Spindle speeds : N.21; 19 - 1.900 Rpm.

- Spindle taper : 5 C.M.

- Spindle Ø : 95 mm.

- Spindle travel : 380 mm.

- Max. working height : 1.700 mm.

- Column Ø :450 mm.

- Weight of the machine ca. 5 t

- Dimensions of the machine ca. 3x1,2x3,8 m


For more information please contact us.

Specifications

ManufacturerRadial drilling machine CSEPEL RF31/B
Year1977
ConditionUsed
