1984 Internal grinding machine WMW SI6/1-N AS

Contact us for price

Romania

orCall +4 021 223 03 45

Description

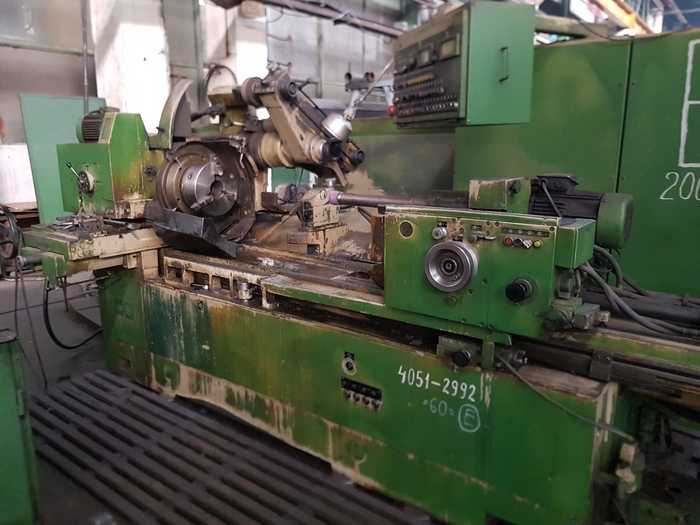

WMW-ERFURT INTERNAL GRINDER
MODEL: SI6/1-N AS
YOM: 1984

Capacities:

Max external diameter ground. 400 mm.
Max depth ground. 315 mm.
Max swing inside guards. 500 mm.
Max distance workhead flange to:
Wheelhead. 1250 mm.
Face grinding wheel. 500 mm.
Centre height: over table. 355 mm. over floor. 1210 mm
WORKHEAD: Speeds (11) 40 - 400 rpm
Motor. 0.9/1.5 KW
Swivels right to left. 0 - 30ï
Rapid traverse. 10 mm/min
MOTORS: Internal spindle 7.5 KW
Workhead 0.9/1.5 KW
Total connected load. 17 KW
Approximate Weight: 6500 Kg

The machine is in working condition.

For more details please contact us.

Specifications

ManufacturerInternal grinding machine
ModelWMW SI6/1-N AS
Year1984
ConditionUsed
