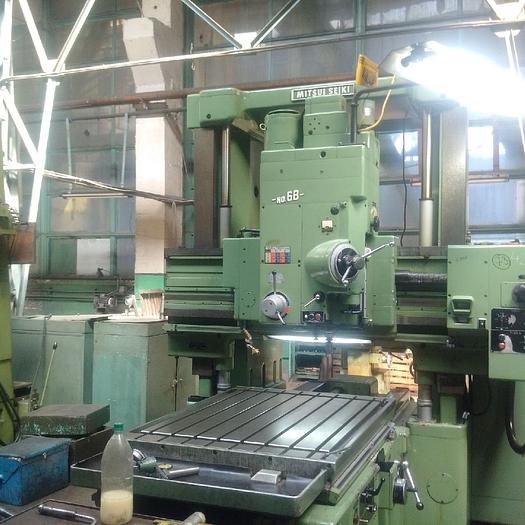

Jig boring machine MITSUI SEIKI No. 6B

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Jig boring machine No. 6B

Table Size-W:
960 mm
Table Size-L:
1,280 mm
Dimensions:
3.05×2.30×2.8 M
Weight:
8.5Ton
table travel longitudinal 1020 mm
headstock travel cross 760 mm
vertical travel – crossbar 800 mm
max. travel between columns 1120 mm
distance between spindle head – Table max. 1040 mm
table surface area 1280 x 960 mm
T-slots 8 x 16H7
rapid traverse of table 2 m/min
table feed 50 – 300 mm/min
rapid traverse spindle slide 1500 mm/min.
milling feed range 75,150 mm/min
vertical feeds: 350 mm/min.
taper MK 4
quill stroke 250 mm
quill feed 0,03 – 0,30 mm/min.
cutting range 60 / 300 mm
diameter of hob max. 150 mm
spindle drive 3,7 kW
capacity 12 kVA

For more information please contact us.

Specifications

ManufacturerJig boring machine
ModelNo. 6B
ConditionUsed
