1979 Jig boring machine OERLIKON KC 6

1979 Jig boring machine OERLIKON KC 6

Contact us for price

Romania

orCall +4 021 223 03 45

Description

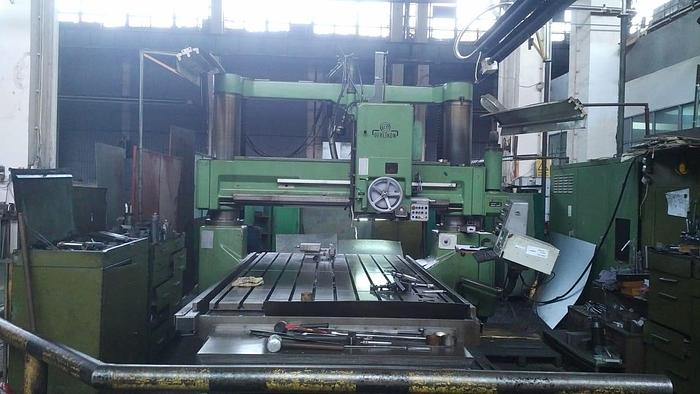

Jig Boring Machine OERLIKON KC6


Table size: 3.200 mm x 1.800 mm

Longitudinal travel (X-axis): 3.000 mm

Transversal travel (Y- axis): 1.800 mm

Spindle stroke (Z-axis): 400 mm

Max distance between spindle and table: 1.160 mm

Distance between columns: 2.500 mm

Spindle speeds: 11,2 – 2.240 R.P.M.

Taper in spindle: ISO 50

Feeds X,Y,Z: 1 – 1000 mm/min and 0,018 – 3,15 mm/Rev.

Rapid feed: 5.000 mm/min

Voltage: 50 Hz 3x 380 Volt

Weight of the machine : 22 tons


The machine is in working condition.


For more information please contact us.

Specifications

ManufacturerJig boring machine
ModelOERLIKON KC 6
Year1979
ConditionUsed
