1979 TWIN COLUMN HORIZONTAL BORING MILL MITSUBISHI MAF280/200NC

Contact us for price

Romania

orCall +4 021 223 03 45

Description

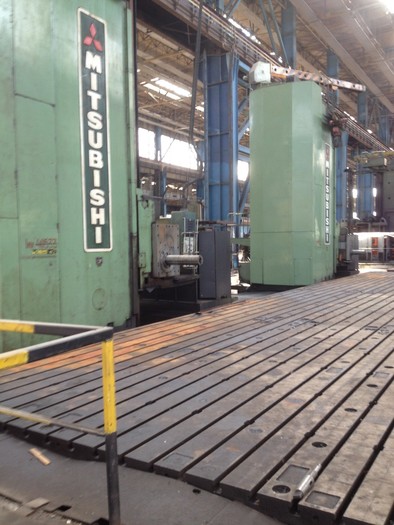

TWIN COLUMN HORIZONTAL BORING MILL MITSUBISHI MAF280/200NC
YOM 1979

MAIN TECHNICAL DATA:
Boring Spindle ....................... 200 mm
Milling Spindle ...................... 280 mm
Vertical Head Travel, Y-Axis ......... 5000 mm
Column Travel, X-Axis ................ 18000 mm
Ram Travel, Z-1 Axis ................. 1300 mm
Boring Spindle Travel, Z-Axis ........ 1300 mm
Spindle Speeds,4-Ranges .............. 4-600 RPM
Dimension: 36.5 x 13.3 x 10 m (LxWxH)

Accessories:
Rotary table MRD4040/100TON 4000X4000mm
12 pcs. floor plates 6000X2000MM
4 pcs. floor plates 4000X2000MM

Total weight ab. 453 TON

The electric equipment is mostly old and incomplete.

For more information please contact us.

Specifications

ManufacturerTWIN COLUMN HORIZONTAL BORING MILL MITSUBISHI MAF280/200NC
Year1979
ConditionUsed
