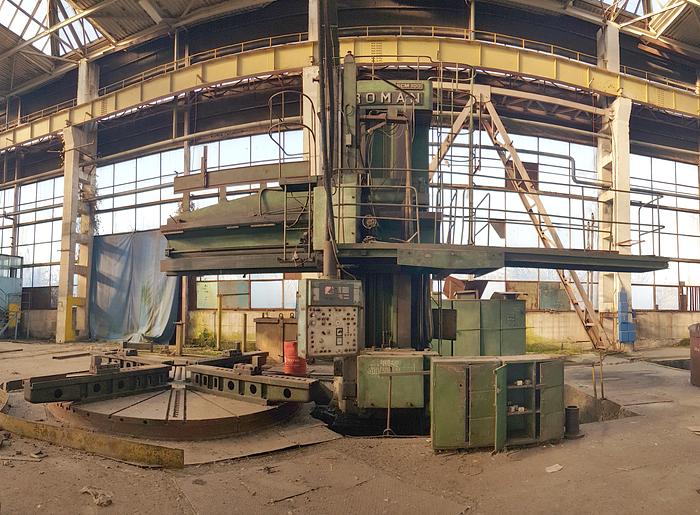

1985 Single Column Vertical Turning Lathe SCM100

1985 Single Column Vertical Turning Lathe SCM100

Contact us for price

Romania

orCall +4 021 223 03 45

Description

Single Column Vertical Turning Lathe SCM100 as follows: Year of manufacture 1985 Manufacturer: I.M. ROMAN – ROMANIA Main technical data: - MAX. TURNING DIA.10.000mm - MAX. TURNING HEIGHT 3150mm - MIN. TURNING DIA. OF A WORKPIECE WITH 10m DIA.:6.300mm - FACE PLATE DIA.:4770mm (187.8”) AND WITH 8 PCS. EXTENSION CAN BE INCREASED TO 10.000mm - MAX. WEIGHT OF WORKPIECE: 100 to. - FACE PLATE SPEED RANGE:0,4-40RPM - COLUMN MOVEMENT : 2.500mm - ONE VERTICAL AND ONE SIDE SUPPORT - RAM TRAVEL OF VERTICAL /SIDE SUPPORT: 2000/1600mm - CONTINOUS WORKFEED/RAPID FEED: 6.2-200/2000mm/min - MAX. DIMENSIONS OF TOOL 63X63mm - TOTAL INSTALLED POWER : 250Kw - MAIN MOTOR POWER: 125 Kw - THE FACE PLATE HAS HYDRAULIC SUSTAIN WITH WORKING PRESSURE AT 15 BAR - THE MACHINE HAS BALL SCREW FOR HORIZONTAL AND VERTICAL MOVEMENT OF THE VERTICAL SUPPORT. - OCCUPIED SURFACE: 15.930 X 11.700mm - TOTAL HEIGHT : 10.650mm - HEIGHT FROM FLOOR LEVEL: 8.300mm - TOTAL WEIGHT: 125 to For more information please contact us.

Specifications

ManufacturerSingle Column Vertical Turning Lathe SCM100
Year1985
ConditionUsed
